Model

ZL1066H

Production Place

Qingdao, China

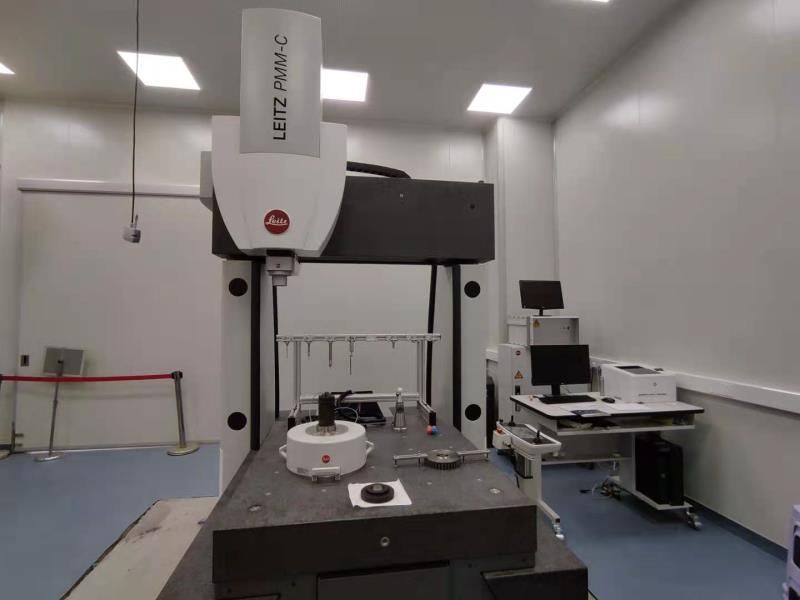

Equipment Introduction

Coordinate measuring machines are widely used in machinery, electronics, instrumentation, plastics and other industries. The coordinate measuring machine is one of the most effective methods to measure and obtain dimensional data, because it can replace a variety of surface measurement tools and expensive combination gauges, and reduce the time required for complex measurement tasks from hours to minutes.

Equipment Parameter

Working stroke: X700mm, Y1000mm, Z650mm, the maximum load-bearing capacity of the worktable; 900Kg measurement accuracy: E=2.5+L/250 (micron).

Equipment Function

Evaluate dimensional data quickly and accurately, and provide operators with useful information about the status of the production process, which is very different from all manual measurement equipment. The measured object is placed in the three-coordinate measurement space, and the coordinate position of each measuring point on the measured object can be obtained. According to the space coordinate value of these points, the geometric size, shape and position of the measured object can be calculated.
